Low temperature resistance sensors with connection box

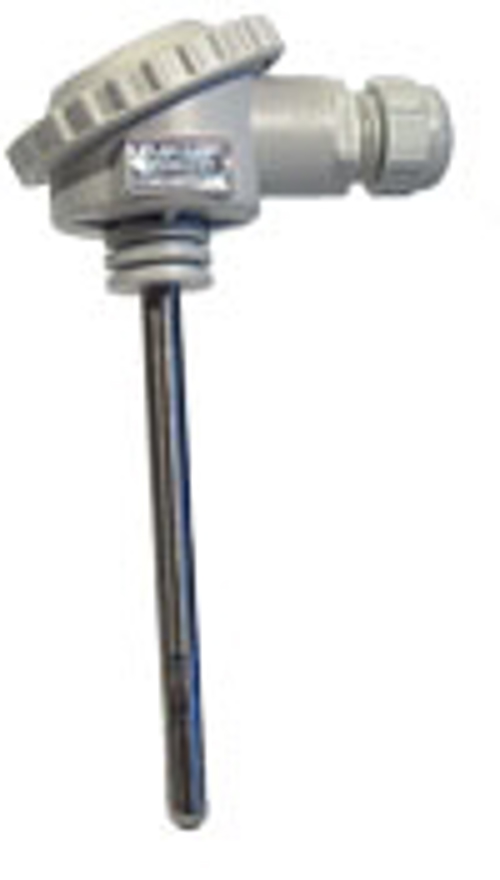

MN524 Resistance temperature sensor with connection box
Key features
- Temperature range : -50 - 130 °C Max. temp. connection box: 140°C
- Sensor element : Ni100, Pt100, Pt1000
- Connection : 2, 3 or 4 wire
- Material sensor tip : AISI304
- Material connection box : GRP (Glass Reinforced Polyester 130°C)
- Protection : IP56
- Weight : 145 g (MN524S125U)
MN1995 Resistance temperature sensor with connection box
Key features
- Temperature range : -200 - 600 °C
- Sensor element : Pt100, Pt1000
- Connection : 2, 3 or 4 wire
- Material sensor tip : AISI316
- Material connection box : GRP
- Protection : IP67
This sensor is designed especially for installation on weather deck onboard ships. Acid proof material AISI316.
MN3170 Resistance temperature sensor with connection box
Key features
- Temperature range : -50 - 130 °C
- Sensor element : Ni100, Pt100, Pt1000
- Connection : 2, 3 or 4 wire
- Material sensor tip : AISI304
- Material connection box : Silumin
- Protection : IP55
- Weight : 320 g (MN3170S150U)
MN3220 Resistance temperature sensor with connection box
Key features
- Temperature range : -50 - 150 °C
- Sensor element : Ni100, Pt100, Pt1000
- Connection : 2, 3 or 4 wire
- Material sensor tip : AISI304
- Material connection box : Thermoplastic polyester.
- Protection : IP55
- Weight : 130 g (MN3220S150U)
MN3700 Resistance temperature sensor with connection box
Key features
- Temperature range : -50 - 200 °C (Max. temp. connection box: 140°C)
- Sensor element : Ni100, Pt100 or Pt1000
- Connection : 2, 3 or 4 wire
- Material sensor tip : AISI304
- Material connection box : GRP (Glass Reinforced Polyester 130°C)
- Protection : IP56
- Weight : 140 g (MN3700S125U)
