For liquid levels and flows

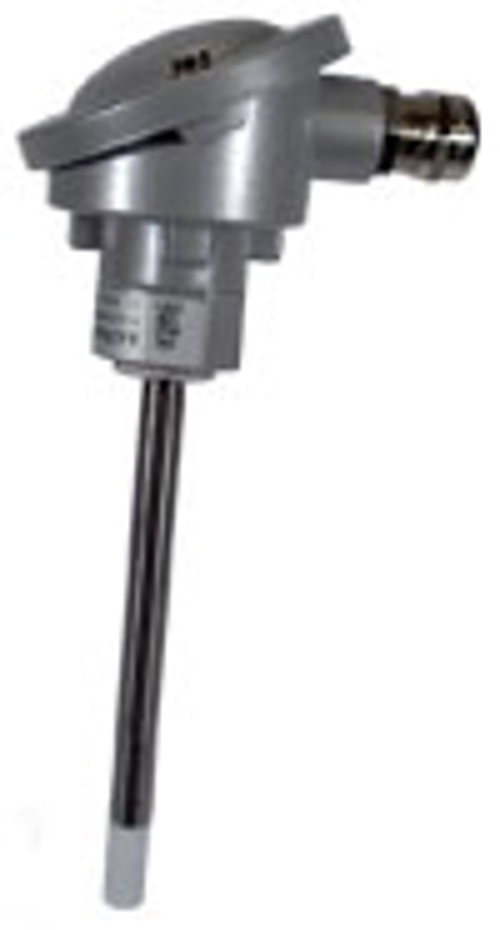

The GL-3D is a high quality level switch with a capacitive sensing element. The sensor is applicable in most liquids with low or medium conductivity, including all oil products and most relevant chemicals. The switch is intended for controlling liquid levels in tanks; flow / no flow conditions in pipes etc.

Customer benefits

• No moving parts
• Easy to install
• Variable insertion length available
• Vetted part in AISI 316 and PTFE (Teflon)
• Relay alarm output: 2 potential free contact 120V/0.5A or 32VDC/0.5A
• Length of sensor pipe: 100-250 mm
• Diameter of sensor: 12 mm
