K-Sim® Engine Steam Propulsion Dual Fuel model

K-Sim® Engine Steam Propulsion Dual Fuel model

The K-Sim Engine Steam Propulsion Dual Fuel model simulates the steam propulsion plant of a typical modern, large LNG tanker machinery. The steam plant model is based on an actual LNG tanker, with performance and dynamic response closely matching that of the real vessel. This simulation emphasizes systems unique to dual fuel steam plants, including boilers, turbines, condensers, the condensate system, and both the fuel oil and fuel gas systems. In addition to sophisticated propulsion control and boiler management systems, the model also demonstrates how boil-off gas is utilized to ensure safe and economical operations on board.

Skip to content

Kongsberg Engine Room Simulators

Our engine room simulators offer realistic, hands-on training experiences in a ship-like environment, integrating vital components such as main engine remote controls, engine-room local panels, controllers, engine telegraphs, alarm systems, power supply switchboards, engine sounds, and more.

We have an extensive model library featuring various propulsion plants and engine types, all certified by the engine manufacturers as exact simulations. Our library includes models of diesel engines from renowned manufacturers like MAN B&W, Wärtsilä, Sulzer, Pielstick, MaK, and MTU, in addition to gas turbines, diesel-electric, water jet, and steam propulsion systems.

Furthermore, our systems are easily networked with our full ship’s bridge simulator for comprehensive, integrated ship training.

Model Features & Details

  • Type: Dual Boiler Dual Fuel
  • Turbo Generators: 2
  • Cargo Pumps: 8
  • Main Boiler Super Heater Outlet Pressure: 900/62 psi/bar
  • Main Boiler Super Heater Outlet Temperature: 959 °F / 515 °C
  • Main Boiler Steam Capacity: 2*58 tons/h
  • Main Turbine Max Power: 27,000 kW
  • Corresponding Speed: 80 rpm
  • Vessel Length Overall: 277.00 m
  • Vessel Breadth Moulded: 43.4 m
  • Service Speed: 19.5 knots
  • Vessel Draught: 11.4 m
  • LNG Tank Capacity: 145,000 m³

Model Main Specifications

High-fidelity engine room systems include:

  • Fuel Oil Service System

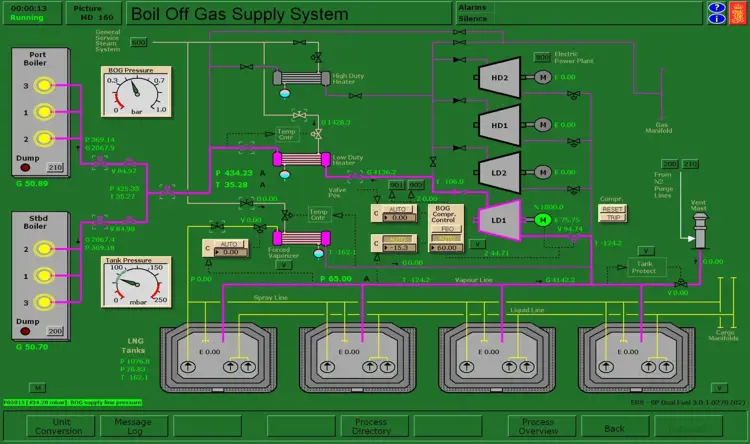

  • Boil Off Gas Supply System
  • Boiler 1 and 2 – Fuel Supply

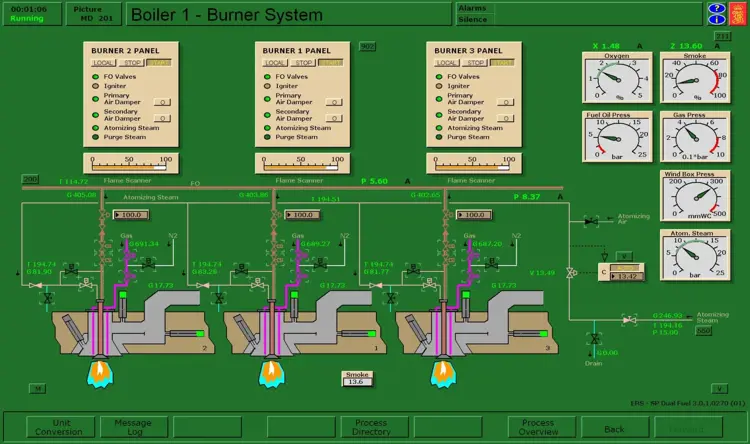

  • Boiler 1 and 2 – Burner System
  • Boiler 1 and 2 – Air/Flue Gas System
  • Boiler 1 and 2 – Water/Steam System

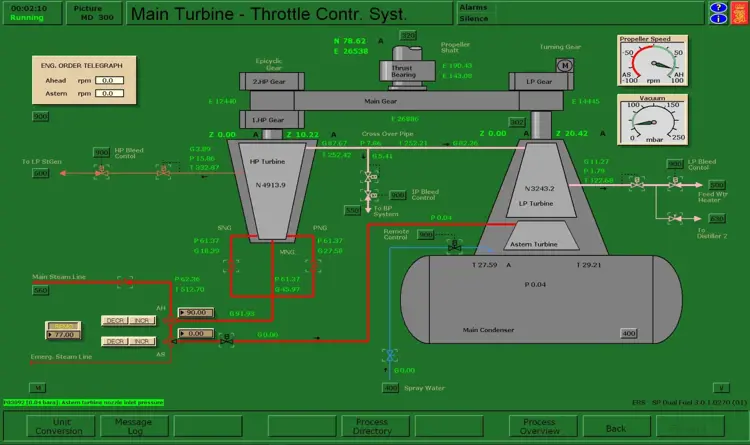

  • Main Turbine – Throttle Control System
  • Main Turbine – Drain/Heat System
  • Main Turbine – Gland Sealing System
  • Main Turbine – Lubrication Oil System
  • Main Turbine – Safety System
  • Ship Propulsion/Ship Load
  • Main Condenser System
  • Condensate Feed System
  • High Pressure Feed System
  • Boiler Feed Water Pumps
  • Back Pressure Steam System
  • Boiler Steam Lines
  • Boiler Steam Dump System
  • General Service Steam System
  • Sea Water Cooled Distiller
  • Condensate Cooled Distiller
  • Electric Power Plant
  • Turbo Generator no 1 and 2
  • Remote Panel
  • Main Turbine Remote
  • Panel – Boiler 1 and 2 Control
  • Remote Panel – Boiler 1 and 2 Burners
  • Boiler Feed Water Control
  • Boiler Combustion Control
  • Boiler Temperature Control

Note: Specifications are subject to change without any further notice.

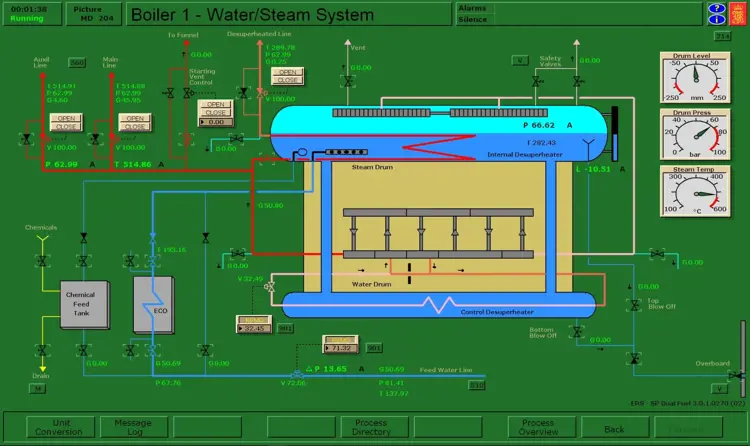

SP DF Water Steam System

Training Objectives

The K-Sim Engine SP Dual Fuel model is designed to be a valuable tool in the basic and advanced training of marine steam engineers. The training objectives are:

  • To train junior engineers in basic engine room operations.

  • To train senior engineers in emergency operations and troubleshooting.

  • To train senior and chief engineers in optimal operation, fuel economy, and energy conservation.

This is achieved through controlled training, leading to a better understanding of the total plant operation, as a result of realistic simulation of a real engine room.

Compliant with Industry Requirements

Kongsberg Maritime simulator models exceed requirements in the STCW convention, Regulation 1/12, and fulfill DNV GL’s standard DNVGL-ST-0033 for Maritime Simulator Systems.
