K-SIM® Cargo LNG Tanker – Membrane

K-SIM® Cargo LNG Tanker – Membrane

Operators of LNG tankers must be thoroughly familiar with process-controlled operations to ensure safe and efficient loading and discharging. If the cargo boils off too quickly or the tank is cooled down too rapidly, it can result in dangerous pressure imbalances or a vacuum, potentially causing extreme temperatures. These fluctuations can damage the tanks or even the hull structure, posing significant risks to the vessel and its cargo. Understanding and controlling these processes is critical to maintaining operational safety and preventing costly damage.

Skip to content

Model Description

The K-Sim Cargo-LNG membrane model simulates an LNG tanker with four GTT design membrane tanks. It includes high-duty and low-duty compressors, cargo heaters/vaporizers, a ballast system, nitrogen and inert gas generators, and a dryer system. Cargo temperature and environmental data can be set individually, while the tank atmosphere and temperature are continuously calculated. Boiling-off operation is also included for realistic scenario training.

STCW Requirements

The LNG-M model meets the STCW requirements for sections A-II/1, A-II/2, A-II/3, A-III/1, A-III/2, and A-V/1, which cover:

  • Safe loading and planning
  • Cargo care during the voyage and unloading
  • Trim, stability, and stress management to maintain seaworthiness

DNV GL Certification

This model is certified and approved according to DNV’s Standard for Certification of Maritime Simulator Systems ST-033.

Training Levels

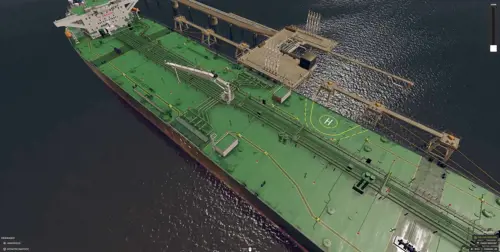

The simulator is available as both a desktop system for classroom training and a full mission system. A BigView 3D interactive mimic with a 3D pop-up display is also included for enhanced cargo operation familiarization.

It is suited for the following training levels:

  • Junior officers in basic cargo operations
  • Senior officers in full-scale cargo operations (loading, discharging, cooling down, venting)
  • Senior officers and captains in advanced cargo-handling operations

Model Features and Details

Vessel Details

  • Cargo Tanks: 4 – Gaztransport Technigaz (GTT Design)
  • Cargo Capacity: 145,914 m³
  • Max Pressure: 23 kPa
  • Min Perm. Temp: -163°C
  • Max Perm. Specific Gravity: 500 kg/m³
  • Discharge Pump Capacity: 1,650 m³/h at 150 mLC
  • Ballast Tanks: 15
  • Displacement: 114,153 MT
  • Length Overall: 285.40 m
  • Length BPP: 274.40 m
  • Breadth Moulded: 43.40 m
  • Depth Moulded: 26.00 m
  • Summer Draught: 11.35 m
  • Design Speed (Loaded): 19.75 knots

Note: Specifications subject to change without notice.

Training Objectives

The objective of this model is to understand the complete cargo-handling operation.

Specific Training Goals Include:

  • Familiarization with all parts of the cargo system
  • Planning cargo loading or discharge using compressors and cargo heaters
  • Coordinating loading and ballast handling, checking atmosphere
  • Controlling flow into tanks, trim/list, pressure, and temperatures
  • Topping up and finalizing loading
  • Managing boil-off during the laden voyage
  • Preparing and lining up for discharge
  • Starting discharge and emptying tanks
  • Finalizing departure ballast
  • Inerting tanks after docking and cooling before loading
  • Inerting and venting tanks for inspection/docking
