Underwater mountable azimuthing thruster

UUC PM and UUC

Our range of underwater mountable thrusters are designed for easy underwater mounting and dismantling without dry-docking the application. Our underwater mountable thrusters provide reliable transit and DP operation.

A robust, heavy-duty L-drive azimuth thruster specifically designed for extended and reliable dynamic positioning (DP) operation on offshore rigs and drillships.

Our thrusters are delivered with power ratings from 3,000 kW up to 6,500 kW. Compact construction provides advantages for mounting at the shipyard and during maintenance. The range is capable of underwater mounting and demounting without the need for dry-docking, using a special lifting technique, and a unique sealing and locking device.

Typical applications of type UUC PM and UUC thrusters

  • Semi-sub drilling rigs / ships
  • Production vessels
  • Offshore windmill installation vessels
  • Other large-scale vessels

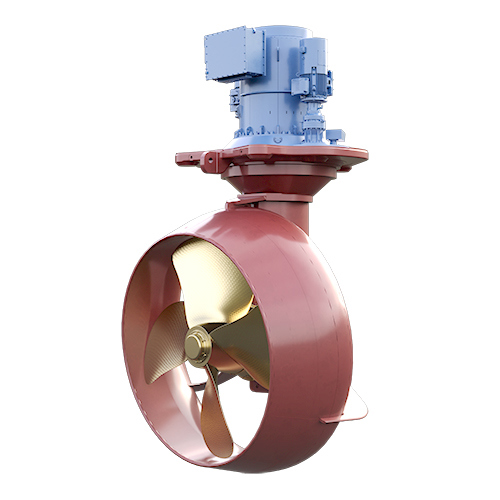

Type UUC PM

The UUC PM (Permanent Magnet motor) type underwater mountable thruster is a highly efficient, simple, and compact solution for various offshore applications where space is limited. The integrated PM motor is mounted very low between the steering gear, which enables the low installation height. Thanks to the PM motor, the thruster gives great electrical efficiency over the complete operational profile. With a new type of lubrication and, as an alternative, environmentally friendly sealing solution, the UUC PM thruster type has become more environmentally conscious as well as more energy efficient.

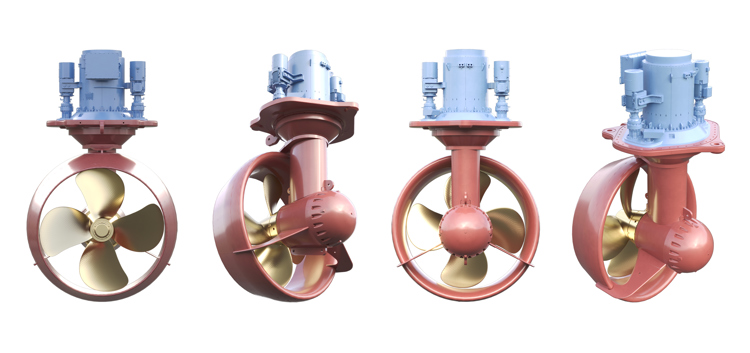

UUC PM 355 thrusters

Key advantages of UUC PM thrusters

  • Integrated PM motor allows for a low installation height
    PM motor, electric steering, and spray lubrication contribute to greater energy efficiency
  • Simple design; eliminates need for intermediate shafting or flexible coupling
  • Underwater mountable and demountable

Technical data UUC PM

UUC PM 355
Propeller diameter (m) 3.7
Power (kW) 4200
Input (rpm) 750
Thrust (mtons) 81


Type UUC

Over 1,000 units have been delivered to date, and the well-known UUC product family offers a complete range of thruster sizes. The compact construction is an advantage when mounting and demounting the thruster. The design is suitable for various applications.

Key advantages of UUC thrusters

  • Proven design; over 1,000 units delivered
  • Excellent in both DP and transit
  • Complete range of UUC thrusters for optimum unit choice
  • Underwater mountable and demountable



UUC HT - High Thrust version

The UUC HT is a well known and trusted product. All the components are within our well proven range, and the HT product range is interchangeable with existing UUC series:
The 405 is interchangeable with 355 HT

All larger, slowly rotating propeller creates same thrust with less power, giving increased efficiency up to 18 – 25 %

A smaller e-motor for power and drive also provides the following benefits:

  • Less installed power on the vessel.
  • Reduced underwater noise.

Technical data

UUC size 305 355 405 455 505
Prop. diameter (m) 3.0 - 3.2 3.5 - 3.5 3.8 - 3.8 4.1 - 4.1 4.5
Power (kW) 3000 - 3200 3800 - 4000 4500 - 4800 5000 - 5500 6500
Input (rpm) 720 - 720 720 - 750 720 - 750 720 - 750 600
Thrust (mtons) 55 - 61 71 - 74 84 - 90 95 - 102 123
UUC HT size 355
Prop. diameter (m) 4.5
Power (kW) 3800
Input (rpm) 750
Thrust (mtons) 86
