Product no longer sold, but supported
We will no longer sell this product and it is being phased out.
Super-Silent tunnel thruster

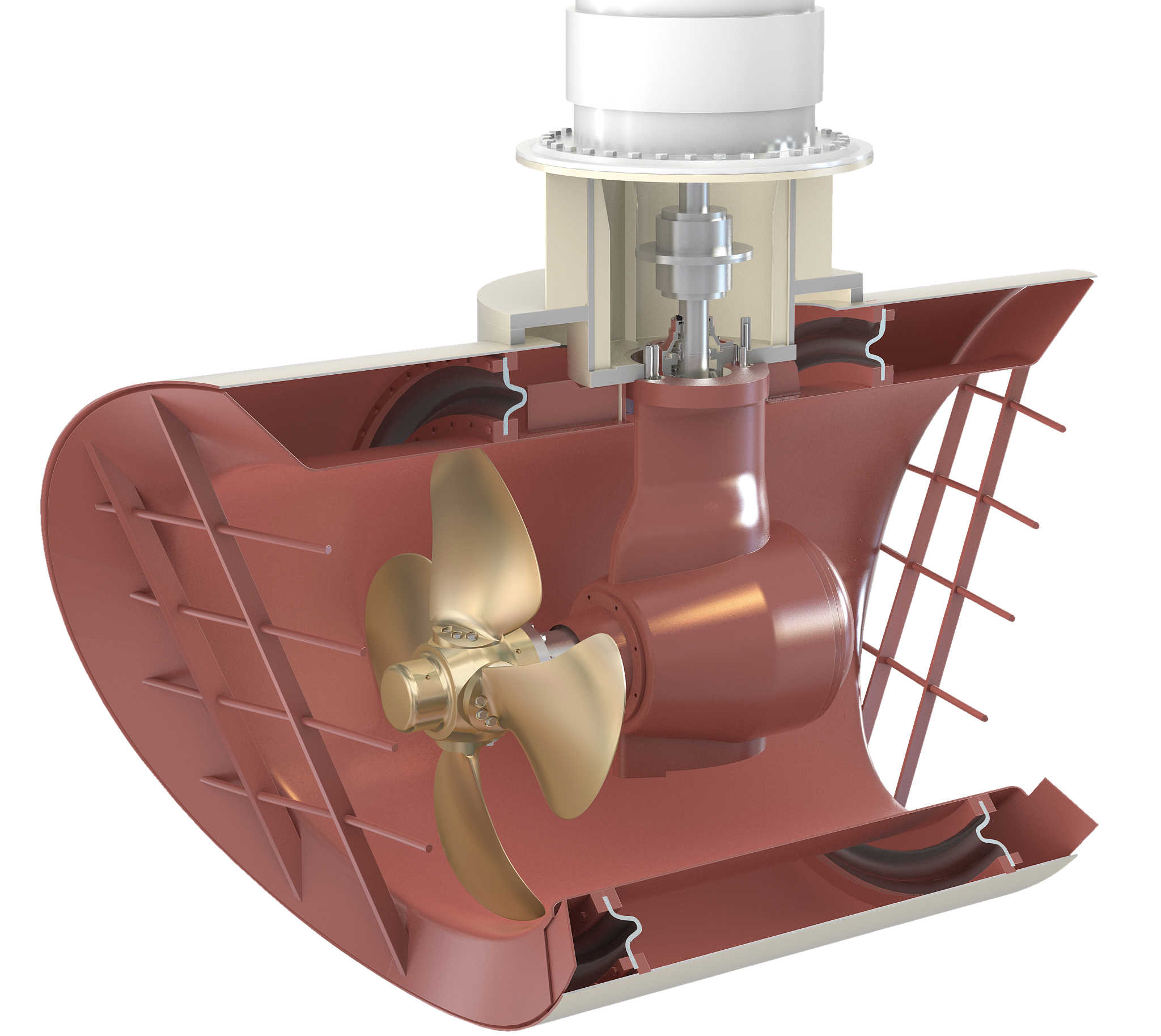

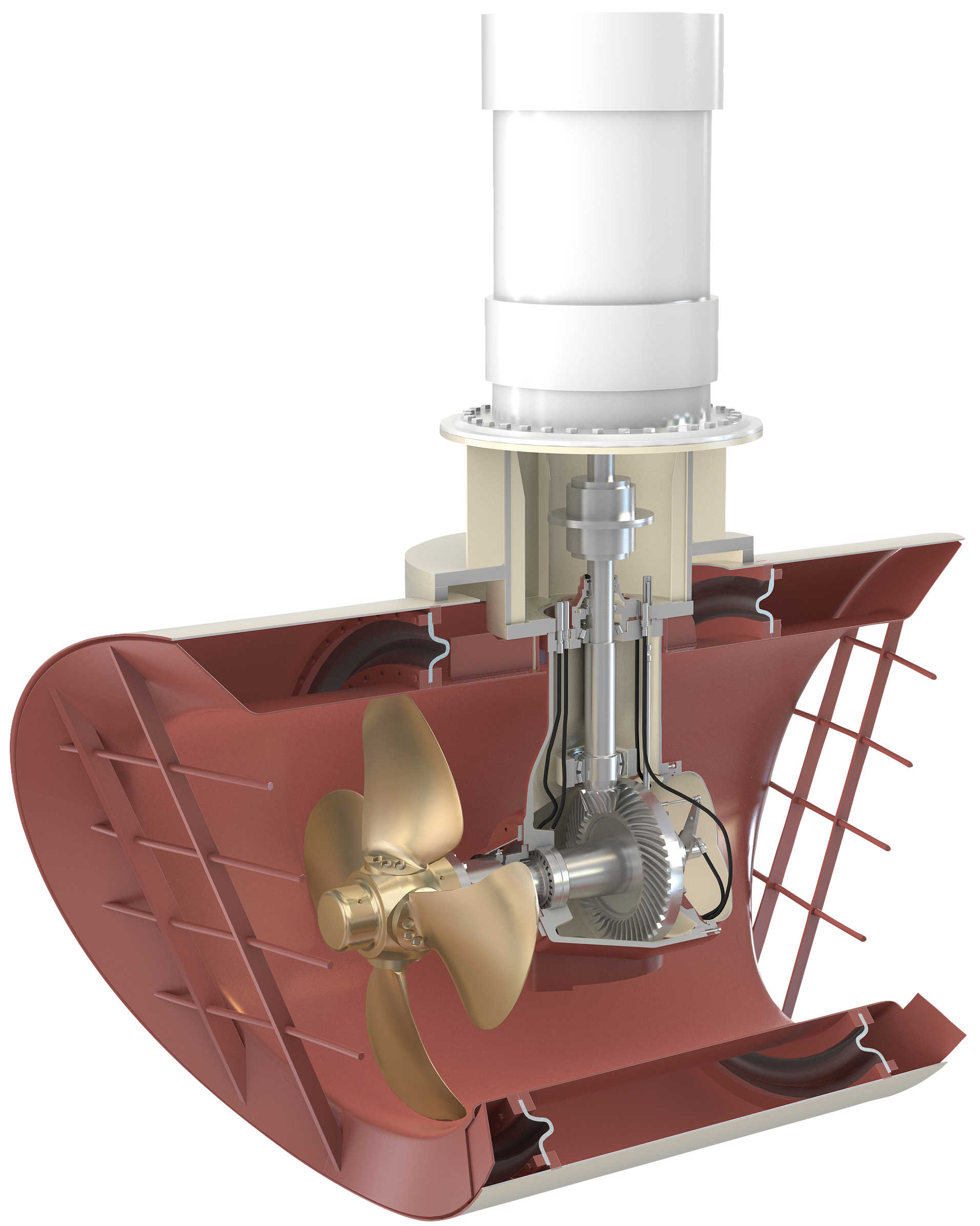

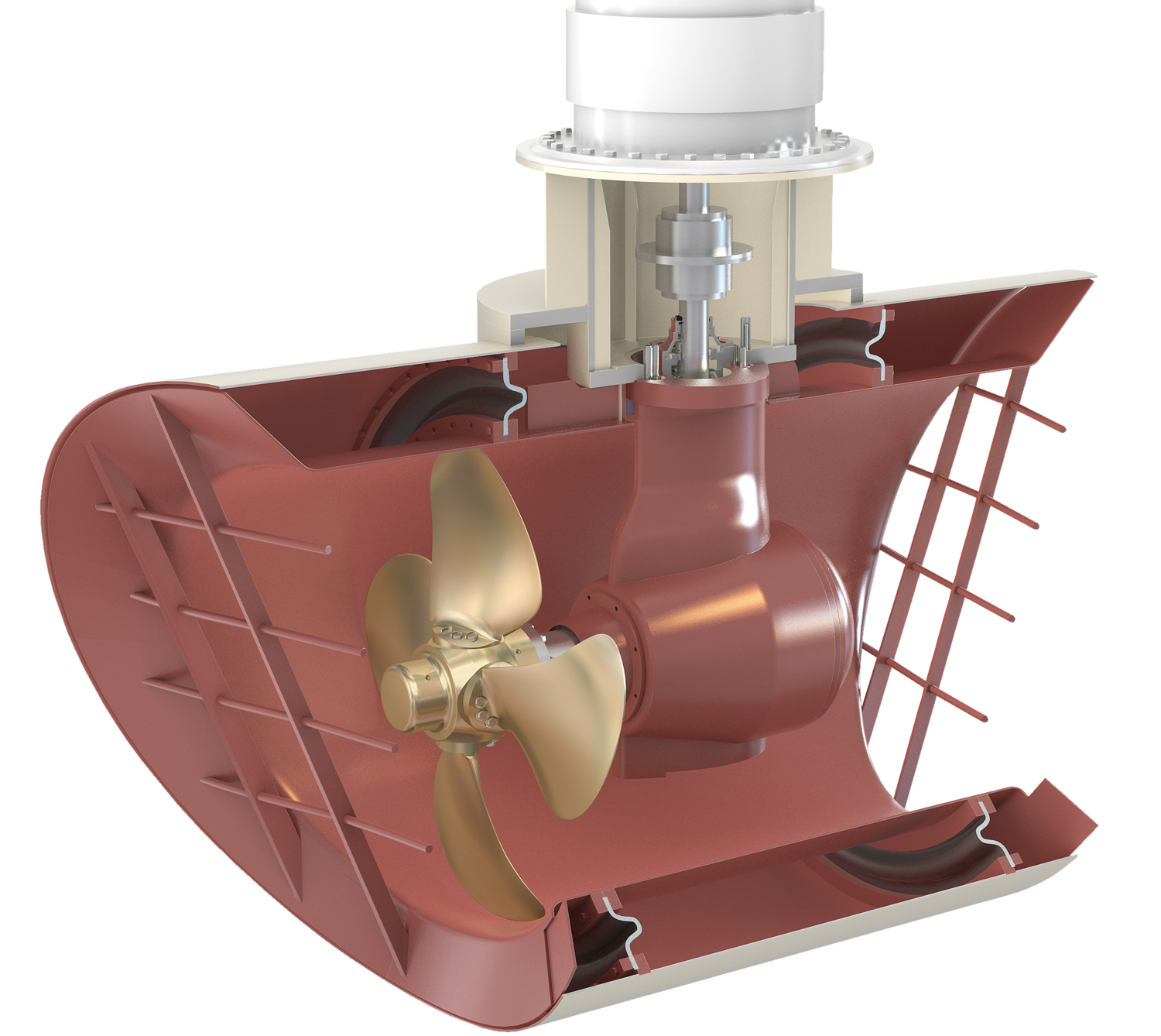

The Super Silent (SS) tunnel thruster has a modified hydraulic power pack for low noise. It has double walls through the full tunnel length and a flexibly mounted inner tunnel.
Maximum comfort for crew and passengers
The Super Silent (SS) version of our tunnel thruster range is based on the standard tunnel thruster and further improved to reduce noise and vibration levels created by the thrusters propeller and surrounding structure. This will increase the comfort for the crew and passengers and further allow the ship to operate in sensitive areas. The system can be tailor-made to fit different types of offshore or merchant vessels. The Super Silent tunnel thruster has double walls in the full tunnel length with a flexible mounted inner tunnel. The concept provides noise reduction up to 15 dB compared to standard designs. A reduction up to 25 dB can be reached in combination with floating floors and other measures by the shipbuilder.
Key features
- Reduced tip speed
- Noise reduction of up to 10 dB compared to standard design
- Reduction of up to 25 dB can be reached in combination with floating floors and other measures by shipbuilder
Technical data
| Thruster type | TT1850 SS | TT2000 SS | TT2200 SS | TT2400 SS | TT2400 SS |
| Dia. (mm) | 1850 | 2200 | 2200 | 2400 | 2800 |
| Motor (rpm) | 1180 | 800 | 1190 | 1190 | 880 |
| Propeller output (rpm) | 289 | 225 | 242 | 230 | 119 |
| Max power (kW) | 800 | 1205 | 1150 | 1500 | 2140 |
Services and support
-
24/7 Technical support
Our 24/7 technical support team is there to help at any time, day or night, wherever your vessel is.
-
Conversions, retrofit and refit
We understand the importance of having the right parts, available in the right place, at the right time.
-
Training
Ensure that your crew is properly and thoroughly trained. This will reduce operational risk, downtime and maximise return on asset investment.
