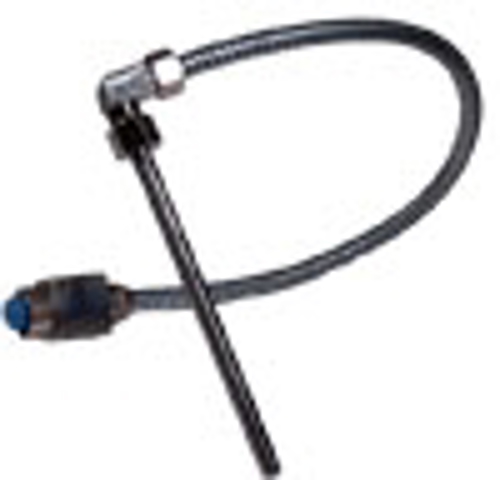

MB644 Temperature Sensor with cable plug

Key features

• Max. temperature in air : 1150 °C
• Max. temp. cable : 200 °C
• Max. temp. plug connector : 100 °C
• Sensor element : Fe-CuNi or NiCr-NiAl
• Connection : 2 or 2x2 wire
• Material sensor pipe : AISI310S
• Plug type : Jaeger
• Protection : IP56
• MB644 Measurements drawing

MB684 Temperature Sensor with cable plug

Key features

• Sensor temperature range : 0 - 800 °C
• Sensor element : Fe-CuNi or NiCr-NiAl
• Connection : 2 or 2x2 wire
• Material sensor pipe : AISI304
• Max. temperature cable : 200 °C
• Plug type : Jaeger
• Protection : IP56

• MB684 Measurements drawing

MB742 Temperature Sensor with cable plug

Key features

• Sensor temperature range : 0 - 460 °C
• Sensor element : NiCr-NiAl
• Connection : 2 wire
• Material sensor pipe : AISI304
• Material cable armouring : Zn plated
• Protection : IP67

• MB742 Measurements drawing

The sensor is delivered with calibration certificate for range 250 to 460 °C (maximum temperature 500 °C)

MB747 Temperature Sensor with cable plug

Key features

• Sensor temperature range : 0 - 800 °C
• Sensor element : Fe-CuNi or NiCr-NiAl
• Connection : 2 or 2x2 wire
• Material sensor pipe : AISI304
• Cable ambient temperature : -60 - 260 °C
• Plug type : Jaeger
• Protection : IP67

• MB747 Measurements drawing

MB763 Temperature Sensor with cable plug

Key features

• Sensor temperature range : 0 - 800 °C
• Sensor element : Fe-CuNi or NiCr-NiAl
• Connection : 2 or 2x2 wire
• Material sensor pipe : AISI304
• Cable ambient temperature : -60 - 260 °C
• Plug type : Jaeger
• Protection : IP67

• MB763 Measurements drawing

MB857 Temperature Sensor with cable plug

Key features

• Sensor temperature range : 0 - 800 °C
• Sensor element : Fe-CuNi or NiCr-NiAl
• Connection : 2 or 2x2 wire
• Material sensor pipe : AISI304
• Cable ambient temperature : -60 - 260 °C
• Plug ambient temperature : max. 100 °C
• Plug type : Jaeger
• Protection : IP67

• MB857 Measurements drawing
