TACTICAL Radio link NATO band IV RL542A

Product description

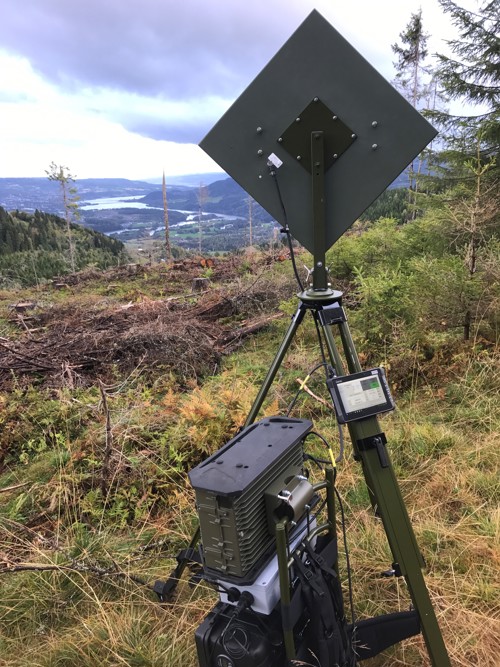

The RL542A NATO Band IV Radio Link, provides point to point and point to multi point high capacity secure connection between IP routers and between legacy TDM based systems. It is an integral part of the KONGSBERG K-TaCS Tactical communications System. Advanced anti jamming features and built in encryption ensure communication in hostile environments. The advanced design provides superior collocation capability. This fully ruggedized-by-design unit is installed on tripods, masts, buildings, towers. Fibre optical interface enables separation of connected systems and the RL542A.

Features

• Frequency Range: 4.4 – 5.0 GHz
• Duplex Spacing: Minimum 60 MHz (depending upon modulation)
• Light weight and small – Easy handling
• No need for any bottom of the mast or indoor unit.
• Spectrally efficient modulation –16/64 QAM
• Optical and copper interfaces for Ethernet IP and G.703
• Secure (AES256) Point to Point and Point to Multi Point operation
• Full band frequency hopping conventional and adaptive
• Managed by SNMP, Web Interface or from KONGSBERG CMS

Technical data

• Frequency Range: 4.4 – 5.0 GHz
• Duplex Spacing: Minimum 60 MHz (depending upon modulation)
• Channel Spacing: 125 kHz
• Transmission Capacity: 1024, 2048, 4096, 8448, 16384, 34368 kbit/s,70 and 100 Mbit/s
• Modulation: CPM / 16 QAM / 64 QAM
• Engineering Order Wire: Over Ethernet
• Output Power: +36 dBm CPM mode
• Auto Mode Dynamic Range: 20 dB
• Spurious Attenuation: 80 dB
• Harmonic Attenuation: 60 dBc for 2nd & 3rd harmonics 80 dBc for higher order
•  Sensitivity:
  • - 8448 kbit/s: -86 dBm (16 QAM)
  • - 34368 kbit/s: -76 dBm (64 QAM)
• TDM Interface: G.703
• Router Interface: Ethernet 1000BASE-T or Optical.
• Conventional full-band FH Mode
• Conventional and adaptive FH: 2048 and 8448 kbit/s..
• Automatic Power Control: All modes
• Frequency Evasion: In fixed frequency operation
• Pulse Jamming Protection: In fixed frequency operation
• Environmental: MIL-STD 810
• EMC: MIL-STD 461
• Over Voltage: MIL-STD-1275
• Temperature: -40ºC - +55ºC
• Input Voltage: 19-32 or 40-60 VDC
• Power consumption: <100W
• Dimensions and weight: H x W x D: 190mm x 260mm x 400mm ex. handles. Weight: 13 kg
