EK80 Portable

Rugged complete transceiver, control system and positioning system

The EK80 Portable is a compact, splash-proof version of the EK80 echo sounder system used by marine research vessels all around the world. It is an all-in-one rugged solution with a compact PC, echo sounder, and GPS. Built-in WiFi lets you control and operate the system from any handheld device or laptop.

The EK80 Portable is a compact version of the EK80 echo sounder system used by marine research vessels all around the world. It is an all-in-one rugged solution with a compact PC, echo sounder, and GPS. Built-in WiFi lets you control and operate the system from any handheld device or laptop.

The integrated transceiver supports chirp (FM) and continuous wave (CW) pulse forms. It contains four individual transceiver channels with multiplexing functionality. You can set it up for flexible split or single-beam transducer configurations.

The EK80 Portable is contained in a splash-proof cabinet. It is easy to handle and quick to deploy in challenging environments.

The system is built around the WBT Mini transceiver. It uses the EK80 software on an integrated computer with a built-in GPS.  As a backup, a small touch-screen is built into the solution.

The Wide Band Transceiver requires an external power supply offering 12 to 15 Vdc, minimum 5 A. A large-capacity battery can also power the transceiver. A  suitable power supply is provided with the delivery.

RAW echo sounder data are recorded to the integrated SSD disk or USB flash drive easily connected to the front panel.

The system is compatible with any Kongsberg Discovery echo sounder transducer. A selection of EK80 licenses is available based on the requested frequency band.

Comprehensive Portability

The EK80 Portable is a compact solution that can be deployed from a small vessel in a rough environment. Built around the WBT Mini transceiver, it utilizes the EK80 software on an integrated computer with built-in GPS. Remote desktop access via WiFi allows control by handheld device or laptop. For backup, a small touch-screen is built into the solution. The system is compatible with any Simrad echo sounder transducer, and a selection of EK80 licenses are available. The integrated transceiver supports chirp (FM) and continuous wave (CW) pulse forms and has four individual transceiver channels with multiplexing functionality.

Versatile Applications

The EK80 Portable serves various fields such as marine and freshwater research, enabling portable setup for mobile surveys from small boats in lakes, fixed location fish counting in rivers, and monitoring fish passage at hydropower dams. Additional uses include habitat mapping and plankton studies. The system’s rugged and splash-proof design, with an integrated computer running the EK80 echo sounder software, provides complete functionality. Essential data is recorded to the integrated SSD or a USB flash drive.

Key features

  • Ready to use
  • Integrated computer and display
  • Integrated GPS receiver
  • Integrated WiFi
  • A member of the EK80 wideband echo sounder family
  • Rugged and compact design
  • Splash-proof housing
  • Four independent channels with built-in multiplexing are available
  • Built-in calibration tool
  • A wide range of transducers is available

Product range

    Find your local dealership

    Our global dealership network enables distribution to more than 100 countries to meet customer needs at any location. Find your local dealership here.
    Where to buy

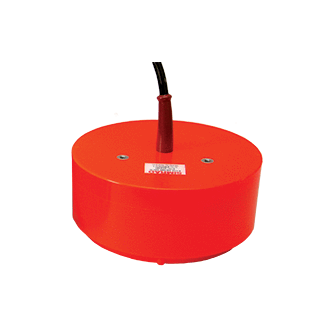

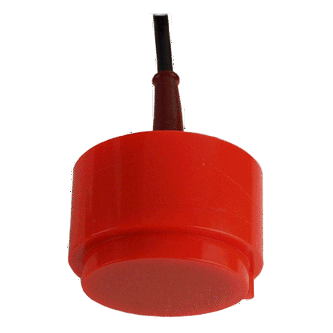

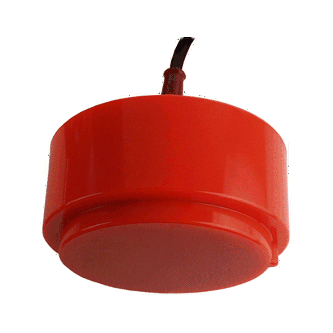

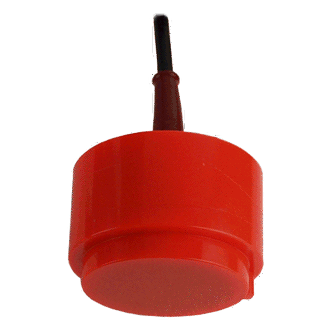

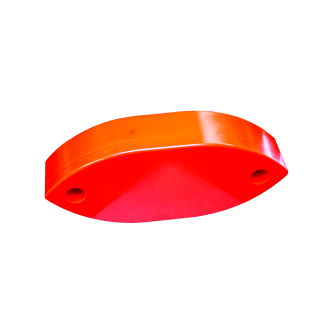

    Related products
